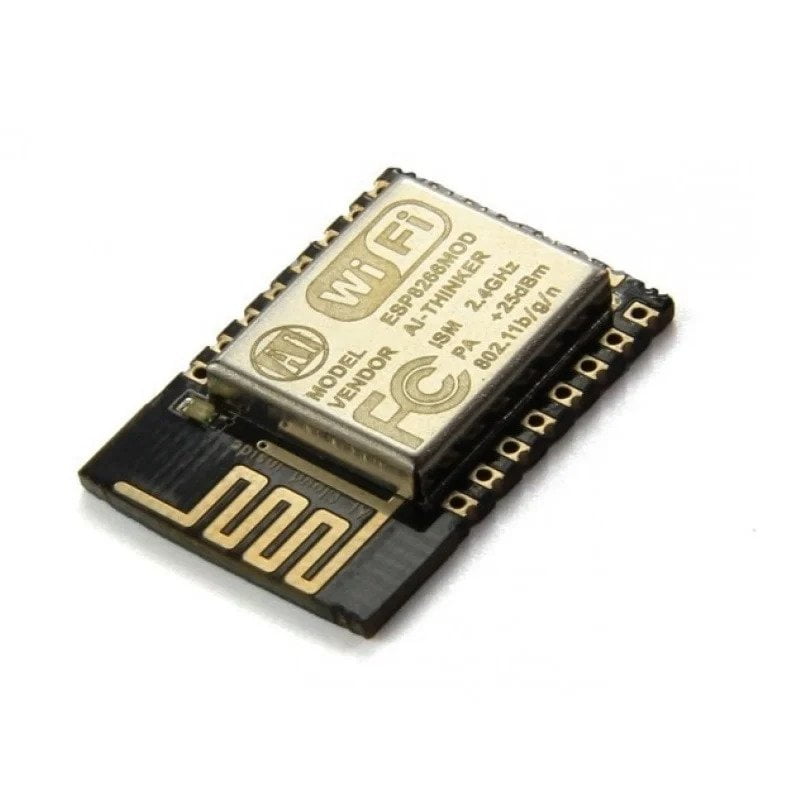

Ai Thinker ESP-12E ESP8266 Serial WiFi Module is an ultra-low power consumption technology, designed especially for mobile devices and IoT applications, user’s physical device can be connected to a Wifi wireless network, internet or intranet communication, and networking capabilities.The Core processor ESP8266 in smaller sizes of the module encapsulates Tensilica L106 integrates industry-leading ultra low power 32-bit MCU micro, with the 16-bit short mode, Clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antenna.SpecificationsModule ModelESP-12EWIFI802.11 b/g/nInput Supply Range (VDC)3.0 ~ 3.6Receiving Sensitivity54Mbps(3/4 64-QAM):-75dBm6Mbps(1/2BPSK):-93dBmCCK,11Mbps -91dBmDSSS 1Mbps:-98dBmOperating Temperature (°C)-40 ~ 125SecurityWPA/WPA2Operating Voltage3.0-3.6VExternal InterfaceN/AOperating Current80mAFrequency Range2.4GHz-2.5GHzLength (mm)16Width (mm)24Height (mm)3Shipment Weight0.03 kgFeatures:802.11 b/g/nIntegrated low power 32-bit MCUIntegrated 10-bit ADCIntegrated TCP/IP protocol stackIntegrated TR switch, balun, LNA, power amplifier and matching networkIntegrated PLL, regulators, and power management unitsSupports antenna diversityWi-Fi 2.4 GHz, support WPA/WPA2Support STA/AP/STA AP operation modesSupport Smart Link Function for both Android and iOS devicesSupport Smart Link Function for both Android and iOS devicesSDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIOSTBC, 1×1 MIMO, 2×1 MIMOA-MPDU & A-MSDU aggregation and 0.4s guard intervalDeep sleep power <10uA, Power-down leakage current < 5uA Wake up and transmit packets in < 2ms Standby power consumption of < 1.0mW (DTIM3) 20dBm output power in 802.11b mode Operating temperature range -40C ~ 125CPackage includes:1 x Ai Thinker ESP-12E ESP8266 Serial WiFi Module
