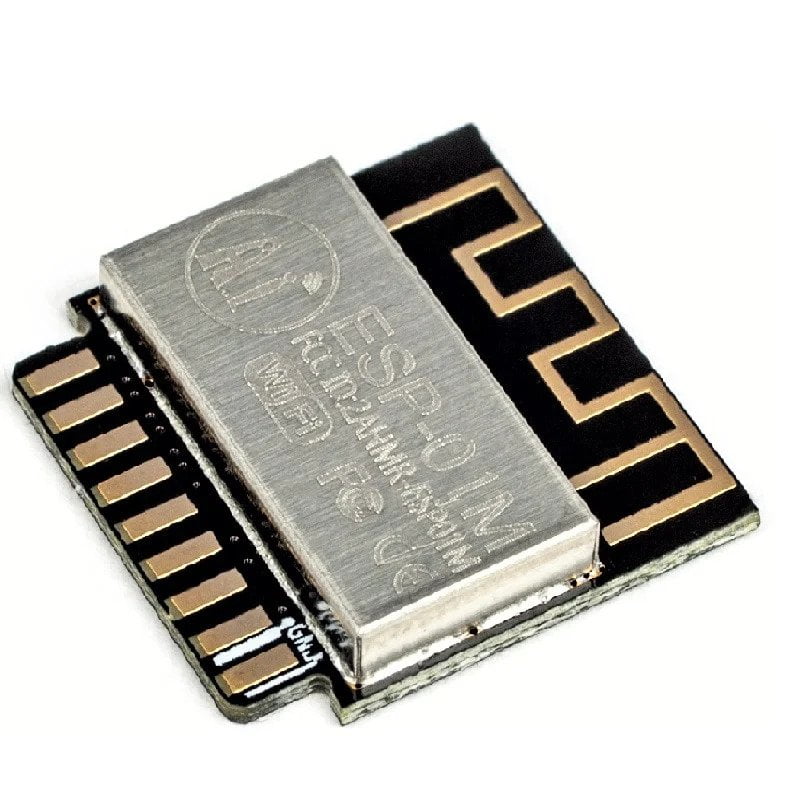

Ai Thinker ESP-01M WiFi Module

Ai Thinker ESP-01M WiFi Module can be widely used on various occasions for networking, home automation, industrial wireless control, baby monitors, wearable electronics, infinite position sensing device, wireless positioning systems, signals, and other networking applications, networking applications is the ideal solution.SpecificationsModule ModelESP-01MPackage/CaseDIP-18Antenna TypePCBTransmit Power (dBm)802.11b: 16±2 dBm (@11Mbps)802.11g: 14±2 dBm (@54Mbps)802.11n: 13±2 dBm (@HT20, MCS7)Receiving Sensitivity54 Mbps (3/4 64-QAM): -70dBm6 Mbps (1/2 BPSK): -88dBmCCK, 1 Mbps : -90dBmCCK, 11 Mbps: -85dBmHT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBmUART BaudrateSupport 300 ~ 4608000 bps ˈDefault 115200 bpsFrequency Range2412 ~ 2484MHzIO Port11SecurityWEP/WPA-PSK/WPA2-PSKStorage Environment-40 ć ~ 90 ć , < 90%RHInterfaceUART/GPIO/PWM/ADCOperating temperature-20 ć ~ 85 ćSPI Flashbuilt-in 1MBytePower Supply Voltage3.0V ~ 3.6VˈCurrent >300mALength(mm)18Height (mm)2.8Width (mm)18Weight (gm)3Shipment Weight0.008 kgFeatures:The smallest 802.11b/g/n Wi-Fi SoC moduleUses low power 32bit CPU and compatible with an application processorMain frequency up to 160MHzBuilt-in 10Bit high precision ADCSupport UART/GPIO/PWM/ADC interfaceIntegrate Wi-Fi MAC/BB/RF/PA/LNASupport multiple sleep modesStandby power consumption as low as 1.0mWEmbedded Lwip protocol stackSupport STA/AP/STA AP work modelSupport Smart Config/AirKissSeries Rate up to 4MbpsUniversal AT instructionSupport serial local upgrade and remote firmware upgradeSmall size 18*18*2.8mmPackage includes:1 x Ai Thinker ESP-01M WiFi Module
