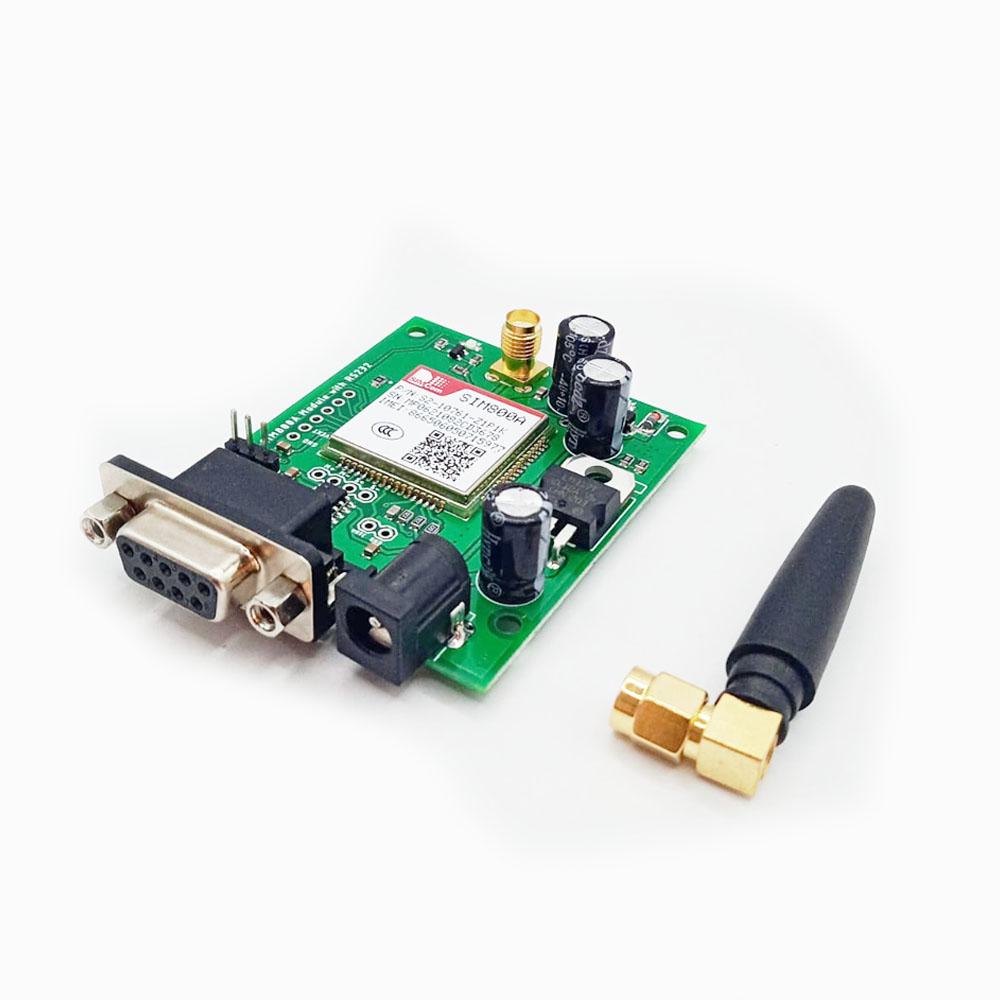

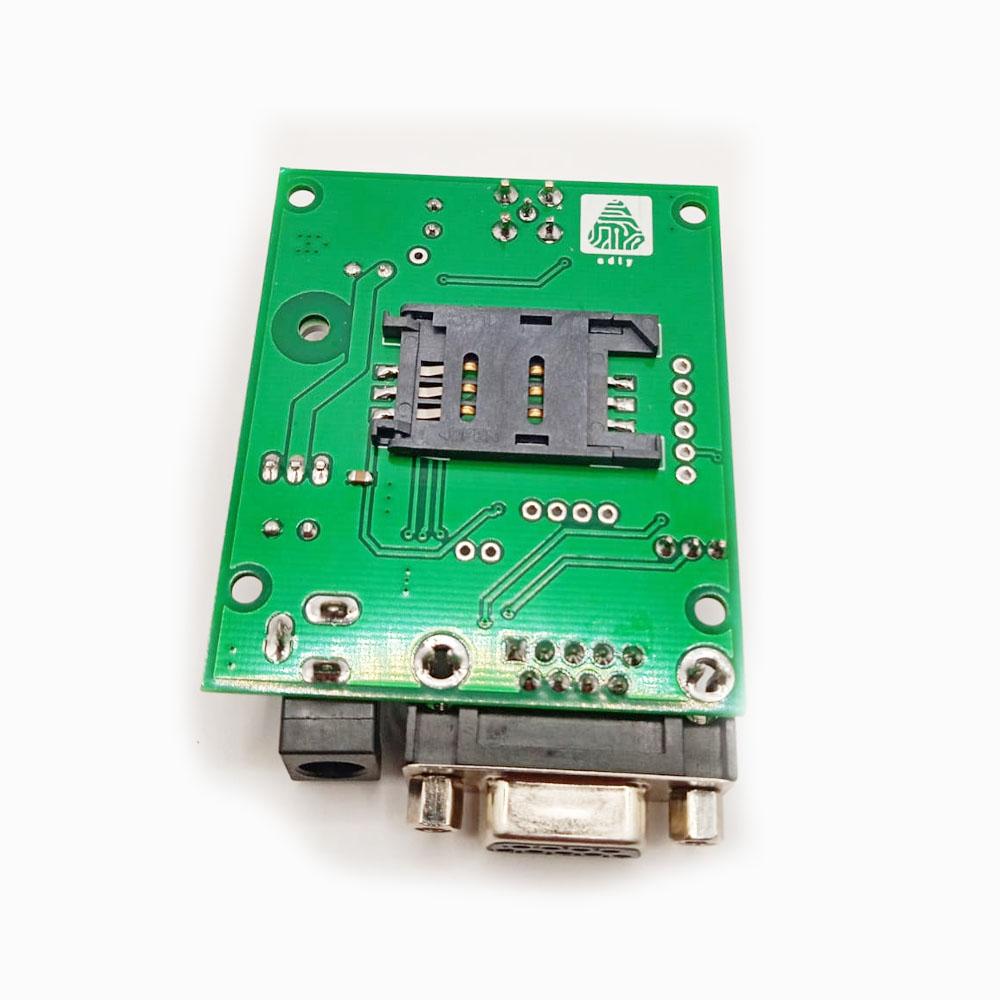

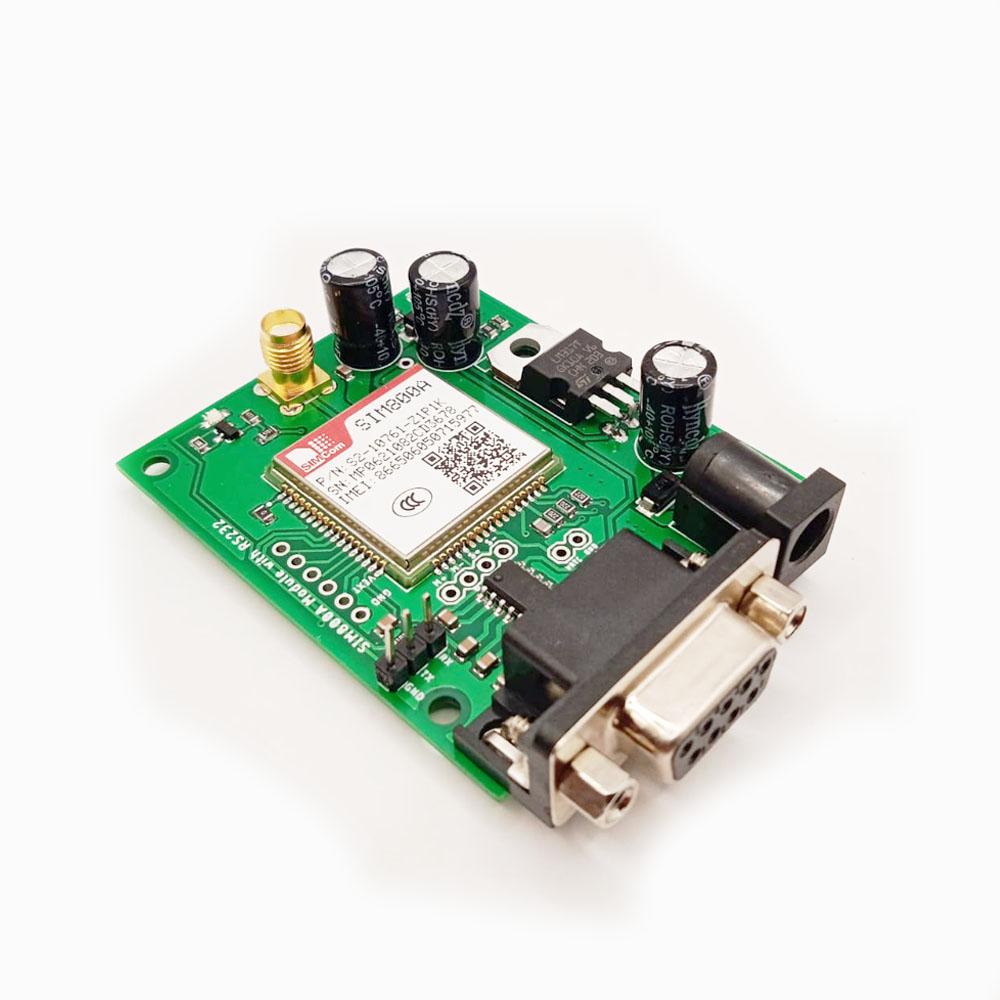

SIM800A Quad Band GSM/GPRS Module with RS232 Interface
$59.36
$107.43
Features: SIM800A Quad Band GSM Module Bands: GSM 850MHz, EGSM 900MHz, DCS 1800MHz, PCS 1900MHz Coding schemes: CS-1, CS-2, CS-3, CS-4 Tx power: Class 4 (2W), Class 1 (1W) GPRS class 2/10. Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT command set). Voltage Supply Required- 9VDC to 12VDC with atleast 2A Peak Current Capability High-Quality Product (Not hobby grade). 5V interface for direct communication with MCU kit. TTL Rx and TTL Tx and DB9 Connector Based RS232 Outputs Configurable baud rate. Built-in SIM Card holder. Built-in Network Status LED. Inbuilt Powerful TCP/IP protocol stack for internet data transfer over GPRS. Low power. Operating temperature: -40C to 85C External Finger type antenna Weight – 40gm
