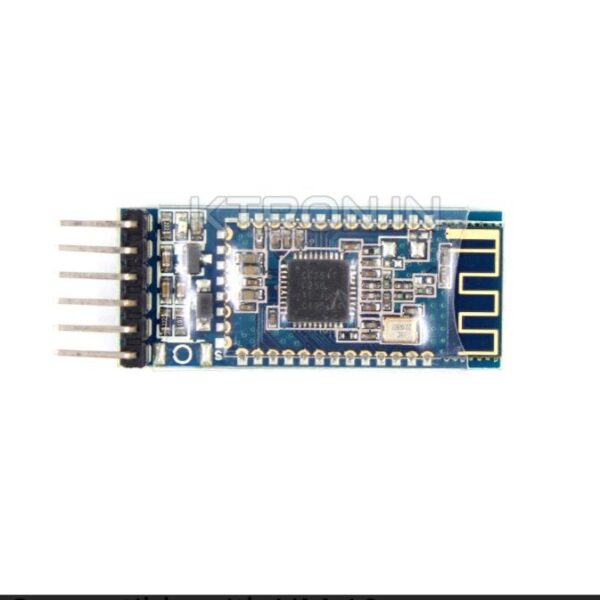

AT-09 Bluetooth 4.0 UART Transceiver Module CC2541 Compatible with HM-10

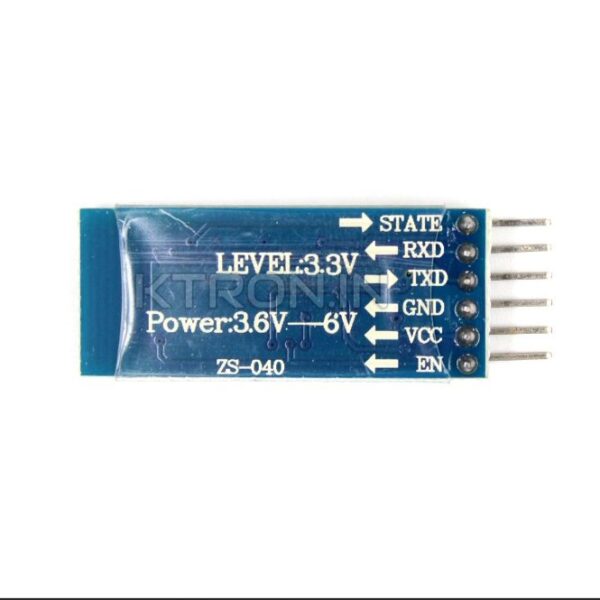

The AT-09 Bluetooth 4.0 UART Transceiver is a module that contains a BLE chip (a CC2540/CC2541). This module allows performing serial communication with the BLE chip thanks to an Rx and a Tx pin. This module is also very similar to the HM-10 module and is also compatible with it. So if you have some experience with the latter, you will get started quickly with the AT-09. This small size Bluetooth 4.0 TTL transceiver module allows your target device to communicate with your iPhone/iPad, IOS 6 or Android 4.3 above devices. You can set it as a slave or master and use AT command to set the baud rate. Specifications Size: 17mm * 39mm Ultra-low standby power consumption 90uA ~ 400uA Ultra-long distance connections of 100 ft / 60 m Fast reaction speed 0.4 seconds Android, Apple, PC, MAC full general. Receive no byte limit, up to 3K Bytes / sec Do not need to do MFI IOS system perfect support. Android 4.3 system perfect support. Password: 1234 or 0000 Pin Description STATE: state test pins, connected to an internal LED, generally keep it unconnected. VCC: positive pole of the power source. GND: Ground. TXD: serial interface, transmitting terminal. RXD: serial interface, receiving terminal. Applications Industrial remote control, remote sensing. POS system, Bluetooth keyboard, mouse, game controllers. Automobile testing equipment. Portable, the battery power of medical equipment. Automated data collection. Bluetooth remote control toy. The wireless LED display system. Bluetooth printer. Intelligent household, industrial control. Tutorials We have used this module in one of the bootloader projects. You can refer to that tutorial. AT Commands Package Includes 1 x AT-09 Bluetooth 4.0 UART Transceiver Module CC2541 Compatible with HM-10 Related
