Ai Thinker TB-03F Bluetooth Module

$56.33 $87.31

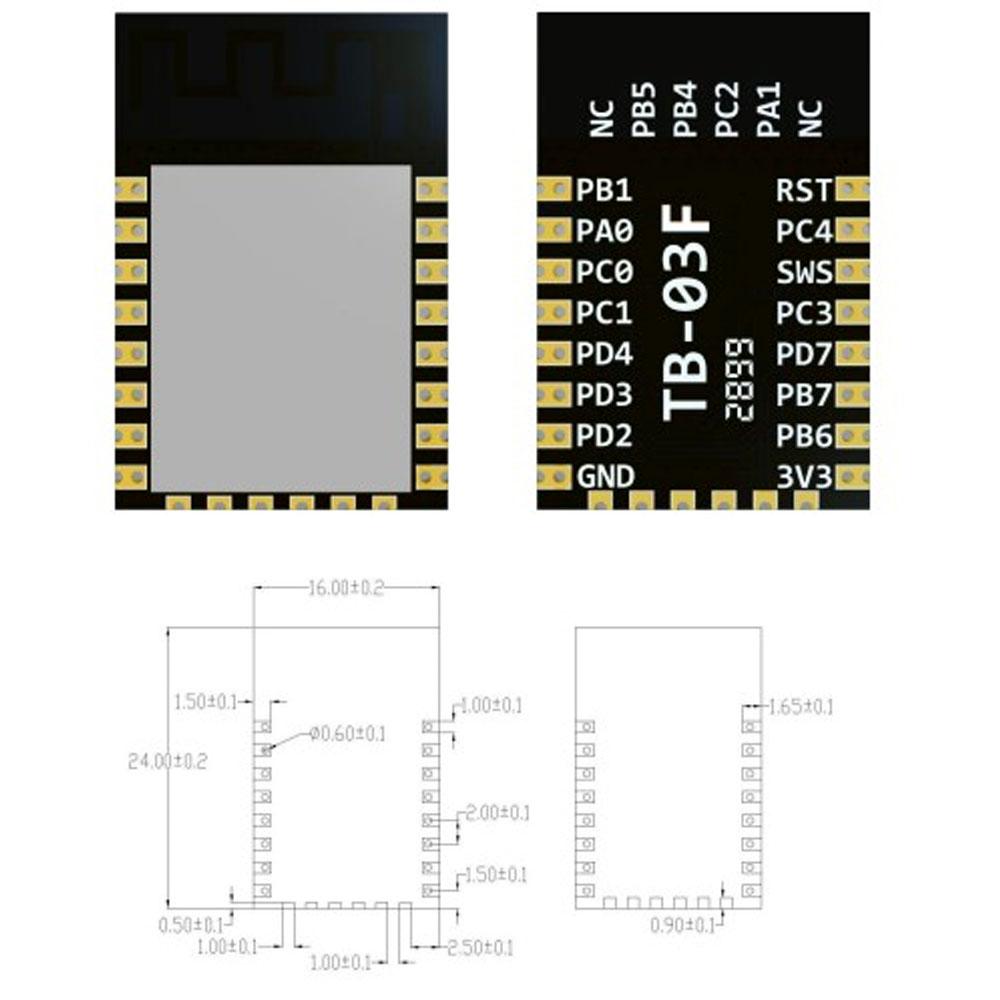

Specifications:  Module model : TB-03F Dimension : 24*16*3(±0.2)MM Package : SMD-22 Wireless standard BT : 5.0 Frequency range : 2400 ~ 2483.5MHz Transmit power : Maximum 10dBm Receive sensitivity : -93dBm±2 Interface : GPIO/PWM/SPI/ADC/I2S Operating temperature : -40℃ ~ 85 ℃ Storage environment : -40 ℃ ~ 125 ℃ , < 90%RH Power supply range Voltage : 2.7V ~ 3.6V, current≥50mA Power consumption deep sleep mode：0.4uA Standby mode：2.51mA TX(PRBS9)@10dBm:6.36mA TX(CarrierData)@10dBm:20.54mA Transmission distance Open Line of Sight：80m ~ 150m
